Radio transmission

Wireless recording of measurement data

The HF-MS-systems (between the measuring device and the PC) record measurement data using digital Mahr, Mitutoyo, OptoRS232, sylvac, TESA or other measuring devices and transfer the data by radio to the PC at the push of a button.

Radio transmission

Radio transmission - characteristics

Our radio transmission systems allow you to record your measurement data using digital Mahr, Mitutoyo, OptoRS232 or TESA measuring devices and transfer the data to the PC at the push of a button without the need for cable connection. Line-of-sight distances of up to 10 metres can be easily covered in indoor applications. The compact dimensions of the transmitter make for good portability and the equipment requires no troublesome external antenna.

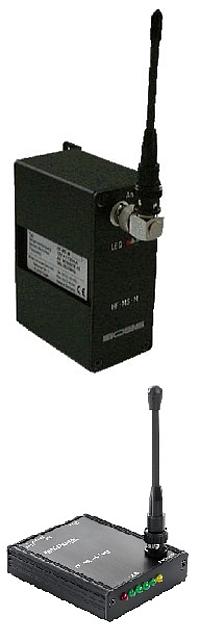

HF-MS-M or HF-MS-M/SLIM – characteristics and description

The receiver is equipped with a serial RS232 or USB (VCP) port for PC connection. Power to the receiver HF-MS-M is provided by means of mains connection or the HF-MS-M/SLIM over the USB port.

Visual confirmation of incoming data is provided by an LED array mounted on the receiving equipment. Confirmation of data receipt is also provided by an acoustic signal. Optional only with HF-MS-M you can have a relay output. Only with HF-MS-M you can put the output format/instruction set MUX10, MUX50 or BOBE determined by solder bridges inside of the receiver.

The receiver (HF-MS-M/SLIM) in the slim-variant is easier, clearly smaller and restricts to the most necessary features.

HF-MS-M and HF-MS-M/SLIM (VCP) systems support standard MUX10 command sets (e.g. for qs-STAT, STATPAK, SPC04 and other MUX10 compatible programmes). This is identical to the Mitutoyo DMX-1/DMX-3 command set.

(VCP=virtual COM-Port)

HF-MS-M

HF-MS-T_USB – characteristics and description

The latest keyboard equipment for wireless data transmission. Power to the unit is provided directly via USB (HID) connection. No special server is required for PC operation – the receiver is recognised as a USB keyboard interface. Recorded data can be transmitted directly to Excel or other text- or statistics-processing programmes.
The HF-MS-T_USB with integrated menu to adjust: language, separator, character, horn (On/Off), address identification, and address block classification.

(HID=Human Interface Device, Keyboard-format)

HF-MS-T_USB

HF-MS-T_Multi – characteristics and description

The latest keyboard equipment for wireless data transmission. Power to the unit is provided directly via USB (HID) connection. No special server is required for PC operation – the receiver is recognised as a USB keyboard interface. Recorded data can be transmitted directly to Excel or other text- or statistics-processing programmes.
The HF-MS-T_Multi with integrated menu to adjust: language, separator, character, horn (On/Off), address identification, address block classification etc..

Special feature: Up to eight Mahr- and Sylvac-measuring instrument with built-in transmitter (integrated radio) such as i-wi (Mahr) or bluetooth (Sylvac) can be received.

(HID=Human Interface Device, Keyboard-format)

HF-MS-T_Multi

HF-MS-T_TLC – characteristics and description

The latest keyboard equipment for wireless data transmission. Power to the unit is provided directly via USB (HID) connection. No special server is required for PC operation – the receiver is recognised as a USB keyboard interface. Recorded data can be transmitted directly to Excel or other text- or statistics-processing programmes.
The HF-MS-T_TLC with integrated menu to adjust: language, separator, character, horn (On/Off), address identification, address block classification etc..

Special feature: Up to eight measuring devices can be connected to a HF-TLC-T-Box over a wireless link. The TESA TLC-TWIN measuring instrument and the TESA TLC-BLE radio transmitter must be present.

(HID=Human Interface Device, Keyboard-format)

Radio transmission connection options

BOBE-transmitters (HF-MS-Sxx) are provided with Mahr, Mitutoyo, OptoRS232, TESA, Sylvac and other recording device connection options (for up to 99 addressable transmitters).

The system requires one receiver and at least one transmitter

Note: In the moment existing frequency
433,9200 MHz; 434,0750 MHz; 434,6000 MHz; 434,7000 MHz;
868,3000 MHz; 869,7500 MHz; 869,8000 MHz; 869,9250 MHz;

The range of connection options, transmitters and prices is given in our table

Scope of delivery

e.g. the HF-MS-M:

  • Receiver
  • Power supply plug
  • Instruction manual
Order No.DescriptionPrice
HF-MS-MReceiver for RS232-port, incl. power supply plug613,00 €
HF-MS-M/SLIMReceiver for USB-port (VCP), incl. USB-cable + driver317,00 €

HF-MS-T_USBReceiver for USB-port (HID, Human Interface Devive), incl. USB-cable317,00 €
HF-MS-T_MultiReceiver for USB-port (HID, Human Interface Devive), incl. USB-cable396,00 €
HF-MS-T_TLCReceiver for USB-port (HID, Human Interface Devive), incl. USB-cable386,00 €

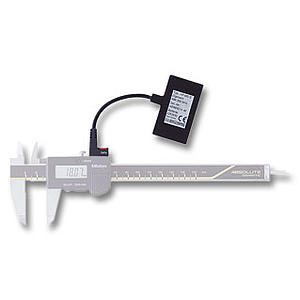

HF-MS-S1Transmitter for: Mitutoyo-Digimatic caliper274,00 €
HF-MS-S1ETransmitter for: Mitutoyo-Digimatic caliper (with cable connector 905338), with data-switch on tranmitter312,00 €
HF-MS-S2Transmitter for: Mitutoyo-Digimatic micrometer/kröplin digitaler gauge from v2.0 (6pol.)312,00 €
HF-MS-S3Transmitter for: Mitutoyo-Digimatic ID-F-clock (10pol.)312,00 €
HF-MS-S4ETransmitter for: Mahr- form types serie EX/ER, with data-switch on transmitter367,00 €
HF-MS-S5/6Transmitter for: OptoRS232 from Sylvac, Mahr, Tesa, Helios, Preisser a.o.337,00 €
HF-MS-S7Transmitter for: Mecmesin AFG xxxN (20pol.)337,00 €
HF-MS-S8Transmitter for: Mecmesin AFG xxxN (15pol.)337,00 €
HF-MS-S9Transmitter for: Bareiss HPE (8pol.)337,00 €
HF-MS-S10Transmitter for: Mahr CX1/CX2, Garant HC1, Mitutoyo LH 600B, Mahr Millimar S1840 (9pol.)337,00 €
HF-MS-S11ETransmitter for: Mitutoyo-Digimatic caliperIP65/67, with data-switch on transmitter337,00 €
HF-MS-S12Trasnmitter for: Mahr-Extramess 2000/2001 (4pol.)337,00 €
HF-MS-S14Transmitter for: Mitutoyo-Digimatic clock; with data-switch on transmitter an cable length max. 900mm, standard ca. 500mm388,00 €
HF-MS-S15Transmitter for: TESA-Micro Hite 10/11/TESA Hite 350 (8pol.)337,00 €
HF-MS-S16ETransmitter for Mitutoyo-Digimatic micrometer IP65/67, with data-switch on transmitter337,00 €
HF-MS-S18Transmitter for: Mitutoyo-Digimatic clock; round transmitter379,00 €
HF-MS-S19Transmitter for: TESA/Sylvac clock; round transmitter379,00 €
HF-MS-S20Transmitter for: TESA Micro Hite plus M/TESA Hite Magna 400/700/TESA Hite 400/700 (9pol.)337,00 €
HF-MS-S21Transmitter for: Mahr 1085337,00 €
HF-MS-S22Transmitter for: Mitutoyo-Digimatic clock IP66 (Typ ID-B u. ID-N)409,00 €
HF-MS-S26Transmitter for: Mahr Perthometer M1 (9pol.)337,00 €
HF-MS-S27Transmitter for: Quadracheck QC200 (9pol.)337,00 €
HF-MS-S30ETransmitter for: Mitutoyo clock (575-121), with data-switch on transmitter312,00 €
HF-MS-S37ETransmitter for: Mitutoyo Digital 543-720B (543 series) dial indicator ID-C (data cable connector 06AGL011), with data-switch on transmitter353,00 €
HF-MS-S38Transmitter for: Mitutoyo digital 543-720B (543 series) dial indicator ID-C (data cable connector 06AGL011), with data-switch on transmitter,  round transmitter420,00 €
HF-MS-S44Transmitter for: Mahr- form types serie EX/ER, with data-switch on transmitter an cable length ca. 500mm418,00 €
HF-MS-S50ETransmitter for: Mahr micrometer 40 EWR (measuring plug DK-D1), with data-sitch laterally on the transmitter337,00 €
HF-MS-S51ETransmitter for: Mahr micrometer 40 EWR (measuring plug DK-D1), with data-sitch above on the transmitter337,00 €
HF-MS-S58Transmitter for: Stahlwille electromechanical torque wrench the series MANOSKOP 730DR337,00 €
HF-MS-S61Transmitter for: Karl Deutsch Leptoskop 2042 (connector type FFA.0S)388,00 €
HF-MS-S62Transmitter for: Karl Deutsch Echomter 1075, 1076 (connector type FGG.00)388,00 €
HF-MS-S67Transmitter for: Mettler Toledo scales Typ PB-S337,00 €
HF-MS-S68Transmitter for: Kern scales Typ 571/572/ALJ/ALS/PCB/PLJ/PLS337,00 €
HF-MS-S73Transmitter for: Sylvac Proximity - caliper357,00 €
HF-MS-S74Transmitter for: Mahr Digimar 817CLM (9pol.)337,00 €
HF-MS-S76Transmitter for: Sylvac Proximity - clock357,00 €
HF-MS-S79Transmitter for: Mahr Digimar 816CL/Mahr Millimar C1200 (4pol.)337,00 €
HF-MS-S80Transmitter for: Bowers Proximity - measuring pistol357,00 €
HF-MS-S122Transmitter for: Mitutoyo KA-Counter (9pol.)337,00 €
HF-MS-S121Transmitter for: TESA TWIN-CAL 40/67 caliper379,00 €
HF-MS-S125Transmitter for: Mobile roughness measuring device Mahr MarSurf PS10337,00 €
HF-MS-S126Transmitter for: Sauter Kraftmessgerät FH337,00 €
HF-MS-S127Transmitter for: Mobile roughness measuring device Mahr MarSurf M310(measuring plug DK-D1)337,00 €
 Further transmitter on request

Subject to alteration, possible error and potential further development.
All prices (non-binding/subject to change) are in euro, excluding VAT and delivery costs.
