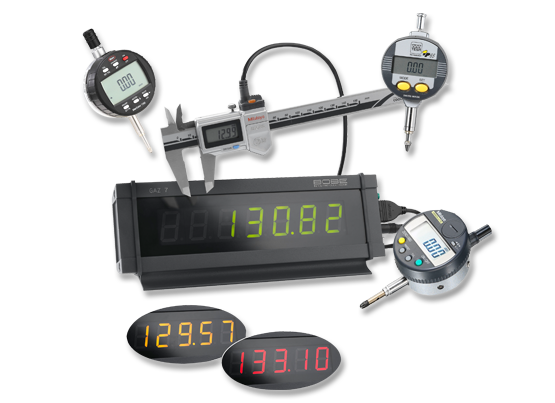

The tolerance display GAZ 7HID - characteristics
The tolerance display GAZ 7HID with good-/bad-assessment (3 Levels), the front color change in tolerance is exceeded for digimatic-interface (measuring equipment). Tolerance setting on the handheld device. Various installation options (wall bracket, table standing "oblique or perpendicular").
With power supply and clear Funktion for LGD/LGS keys from Mitutoyo or only zero the tolerance display. Multiplying function: x0,5/ x1/ x2/ x3,1416.
Outputformat: Human Interface Device as Keyboardformat (HID).
The i-wi wireless display GAZ 7-iwi - characteristics
With the large display GAZ 7-iwi you can wirelessly read measurements from a Mahr measuring devices with integrated wireless (i-wi).
Currently, there are four different types of meters (the MarCal 16EWRi, MarCator 1086Ri, MarCator 1087BRi, and MarCator 1087Ri) operating with the GAZ 7-iwi can be operated.
The display GAZ 7-iwi with good-/bad-assessment (3 Levels), the front color change in tolerance is exceeded for digimatic-interface (measuring equipment). Tolerance setting on the handheld device. Various installation options (wall bracket, table standing "oblique or perpendicular").
Zero the display and multiplying function e.g x0,5/ x1/ x2/ x3,1416.
Outputformat: Human Interface Device as Keyboardformat (HID)
Large Display connection (measuring instruments input) options
Digimatic input (connected with cable) or Mahr-iwi (Mahr-Measuring instrument with integrated wireless i-wi) can be selected as options, depending on the large display design format.
